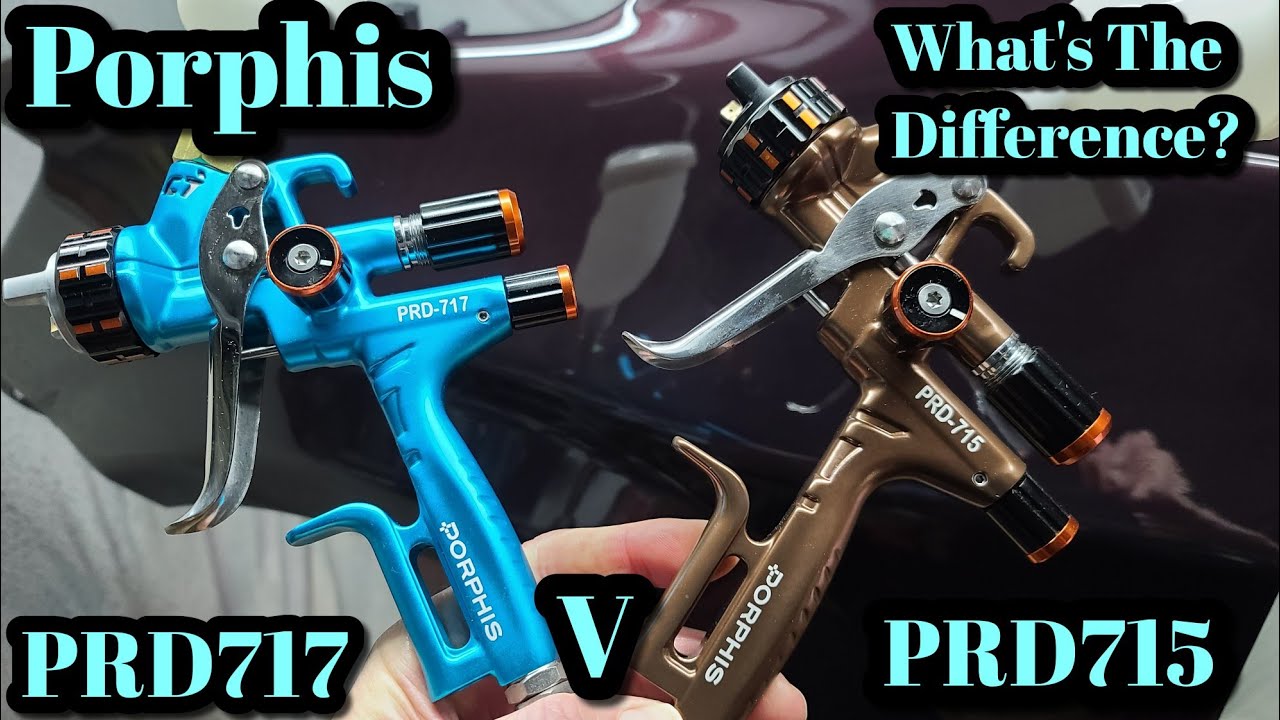

Spray Gun Comparison: PRD-717 vs. PRD-715

1. Executive Context: The Evolution of Professional Value-Tier Tooling

In the current coatings landscape, the strategic selection of tooling is a primary driver of operational efficiency and finish consistency. For years, the market remained stagnant, divided between high-cost legacy brands and substandard budget equipment. By bridging the performance gap, PORPHIS allows workshops to optimize capital investment without compromising the "Class A" finish quality required in high-end refinishing.

PORPHIS is not a "fly-by-night" venture; it operates as a specialized brand under a major industrial group with a 14-to-15-year manufacturing pedigree. This background is validated by a rigorous two-year reliability assessment, during which test units were rotated through multiple technicians in high-volume environments. The results confirmed that these tools maintain mechanical integrity and seal consistency far beyond typical value-tier expectations. This report establishes the technical distinctions between the PRD-715 and PRD-717 models to facilitate data-driven procurement.

2. Engineering Architecture and Build Integrity

Ergonomics in spray gun design is not merely a matter of comfort; it is a critical variable in technician fatigue and transfer efficiency. The PORPHIS platform features a balanced, full-size architecture that provides a substantial hand-feel comparable to premium German and Japanese alternatives.

Shared Platform Specifications

The PRD-715 and PRD-717 share a unified body design, ensuring streamlined maintenance and parts modularity.

• Weight:
  460g (positioning it between ultra-light models and heavier legacy RP units).
• Aesthetics:
  High-grade anodized finishes in bronze or blue.
• Modularity:
  Tip, cap, and needle sets are interchangeable, following the industry-standard "half-price-of-gun" replacement model.
• Tactile Feedback:
  The fluid adjuster features a integrated ratchet/click system. This allows technicians to calibrate needle stops by ear and feel, ensuring repeatable setups without visual confirmation.

Build Quality and Reliability Benchmarks

The machining precision of these units rivals established leaders like Iwata and DeVilbiss. While initial market apprehension often greets new manufacturers, two years of operational testing have proved the PORPHIS sealing system—a nylon seal at the base of the tip—to be exceptionally robust. This architecture is directly comparable to the high-end sealing systems found in SATA and DeVilbiss guns, ensuring zero leakage and long-term durability under heavy solvent exposure.

While the exterior build is identical, the core technical differentiator lies in the internal fluid dynamics of the nozzle sets.

3. Core Technical Differentiator: Standard vs. Split-Tip (V-Nozzle) Technology

Atomization quality is dictated by nozzle geometry. The PRD-715 and PRD-717 utilize divergent fluid-air interaction strategies to achieve specific finishing goals.

PRD-717: Split-Tip (V-Nozzle) Technology

The PRD-717 utilizes advanced V-Nozzle architecture. Unlike standard tips, this geometry initiates pre-atomization of the coating before it reaches the air cap. This results in a higher droplet density and a significantly finer spray. This technology is the engine behind the gun’s ability to maintain a refined, flat finish at lower pressures.

PRD-715: Standard Nozzle Architecture

The PRD-715 employs a traditional "Standard" nozzle set. In technical performance terms, this model dominates as a "cannon." It lacks the pre-atomization of the PRD-717 but compensates with sheer material delivery volume. In speed-intensive benchmarks, the PRD-715 1.3mm can "show its rear end" to a SATA 5000 1.3 RP, outpacing the legacy leader in material output and coverage speed.

Atomization Profile Comparison

These mechanical differences necessitate distinct operational air requirements.

4. Operational Performance Metrics: CFM, Pressure, and Speed

Workshop managers must distinguish between "paper specs" and "real-world" requirements to optimize compressor load and material usage.

Correcting the CFM Narrative

PORPHIS lists the PRD-717 at 15.5 CFM. However, this is a theoretical maximum at 2.0 bar. In practice, because the V-nozzle is designed for low-pressure efficiency, the real-world consumption at 1.5 bar is 10.5–11 CFM. This makes the PRD-717 compatible with standard, non-industrial compressors, a significant advantage for smaller shops and mobile technicians.

Pressure Calibration and the "Bottom-Heavy" Lesson

Precision pressure setting is mandatory for the PRD-717. Testing confirms that 1.8 bar (26 PSI) is excessive for standard clear coats, resulting in a bottom-heavy fan pattern that compromises finish uniformity.

• PRD-717 (V-Nozzle) Sweet Spot: 1.1 bar to 1.5 bar (16–22 PSI).
• PRD-715 (Standard) Sweet Spot: 1.8 bar to 2.0 bar (26–29 PSI).
  (The PRD-715 requires this higher pressure to effectively break down its massive material output.)

Speed of Application vs. Finish Flatness

The PRD-715 is the superior choice for high-volume environments where "seconds per panel" impact the bottom line. Conversely, the PRD-717 provides a flatter, more sophisticated finish but requires a slightly more deliberate travel speed due to its finer atomization.

5. Material-Specific Application Strategies

Tool performance is relative to material viscosity. A strategic "Material-Specific" approach is required for optimal results.

• Base Coat: The PRD-717 is the superior instrument for metallic and pearlescent colors where high control and a drier application prevent mottling. However, some technicians prefer the PRD-715 for "wetter" base coat applications to improve flow in specific climates.
• Clear Coat: The PRD-717 delivers a superbly flat finish at low pressures, ideal for high-solids (HS) clears. The PRD-715 is the preferred tool when the priority is rapid film build and high material flow.
• 2K Direct Gloss: The PRD-715 is the undisputed choice for single-stage solids. Its "blast" of material provides the "thrill" of rapid coverage and the necessary volume for the coating to flow out perfectly in a single process.

The "Technician Swap" Case Study:

Operational feedback highlights that tool selection is material-dependent. One specialist found the PRD-717 "too dry" for his specific clear coat and the PRD-715 "too wet" for his base. By swapping the two—using the PRD-717 for base and PRD-715 for clear—he achieved a perfect workflow.

Tip Size Optimization:

• PRD-717: A 1.4mm tip is recommended as the "versatility choice" to prevent the gun from feeling "too dry" during clear coat application.
• PRD-715: A 1.3mm or 1.4mm setup is ideal for rapid-fire commercial work.

6. Strategic Investment Recommendation and Selection Matrix

The financial advantage of the PORPHIS brand is undeniable. For the price of a single flagship legacy gun (approx. $680 USD / £500 GBP), a workshop can purchase both the PRD-715 and PRD-717. This "Professional Comprehensive" approach ensures the technician has the correct fluid dynamics for any material viscosity.

Selection Matrix

Final Summary

The PORPHIS PRD-715 and PRD-717 represent the pinnacle of value-tier engineering. The PRD-715 dominates in scenarios requiring speed and high material volume, while the PRD-717 provides the precision and low-pressure efficiency of a high-end V-nozzle system. By integrating these tools into their arsenal, professional workshops can achieve elite finishing results while significantly reducing capital expenditure.
