A: Both use HVLP technology, but they're engineered for different use priorities. The PRD-716 (71 series body) is optimized for high-volume automotive shop production — fast coverage, consistent delivery across multiple vehicles per day. The PRD-626 (62 series body) pairs HVLP with the integrated needle valve structure and quick-release modular design, making it the better choice when maintenance speed, ergonomic comfort during extended use, and adaptability to different spraying environments matter as much as pure coverage speed. If you spray in a fixed automotive booth all day, the 716 is the workhorse. If you move between jobs, materials, and setups, the 626's modularity gives you more flexibility.

A: Dry or grainy finishes from HVLP guns on waterborne materials are almost always caused by one of three things: air pressure too high (over-atomizing the water-based material), spray distance too close, or ambient temperature causing flash-off before the droplets hit the surface. The PRD-626 at 1.6–2.0 bar with a 20cm spray distance is specifically tuned for waterborne base coat viscosities. The fine 1.3mm nozzle combined with HVLP's inherently lower velocity droplets gives waterborne particles more time to coalesce on the surface before flashing — the result is a wet, flowing lay rather than a dry spray. Keep your gun moving at a consistent speed and the PRD-626 will lay waterborne base coat as smoothly as solvent-based.

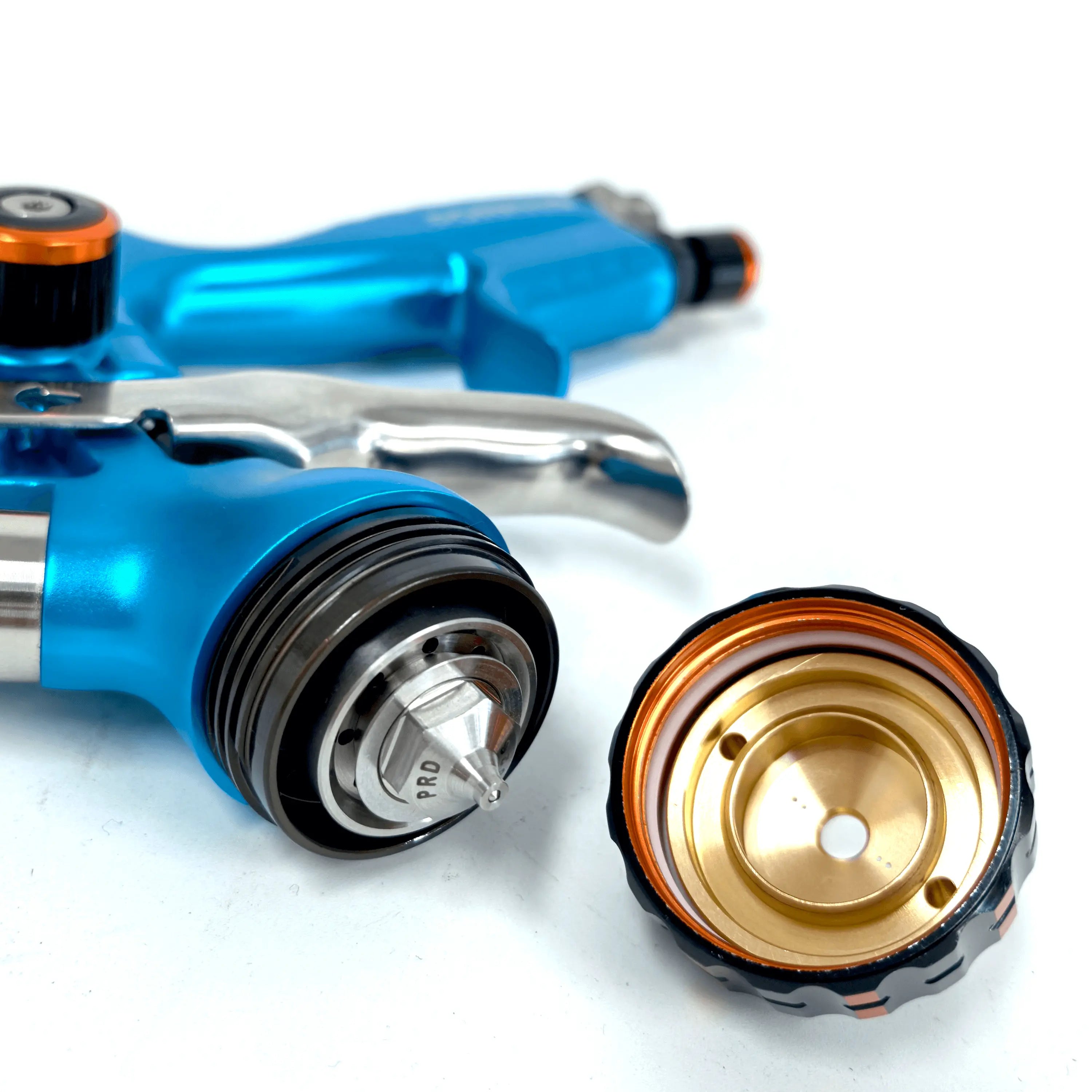

A: Quick-release connectors on the PRD-626 mean you can remove the nozzle, needle assembly, and air cap without reaching for a wrench. In a cleaning routine, this translates to: remove fluid components in under 60 seconds, soak in solvent, reassemble in under 60 seconds. For painters who clean between every color change or at the end of every shift, eliminating tool retrieval and torque re-tightening steps from the routine saves real time across a week. It also eliminates the risk of over-tightening nozzle threads — a common cause of thread damage that eventually ruins the fluid tip seal.

A: Front-heavy guns cause wrist pronation fatigue — your wrist is constantly fighting the gun's forward lean during horizontal passes. The PRD-626's weight distribution is engineered to bring the center of gravity closer to the grip axis, so the gun wants to sit level in your hand rather than tipping forward. Combined with the ergonomic finger rest design, the practical result is less compensatory muscle tension in your wrist and forearm during extended use. For painters doing 6+ hour sessions, this isn't a small detail — it's the difference between finishing the day with a functional wrist and finishing it reaching for ice.

A: Absolutely — and the PRD-626's HVLP technology is arguably better suited to furniture finishing than automotive use. Furniture and cabinet work involves spraying into tight interiors, corners, and recessed panels where overspray accumulation is a real problem. HVLP's lower transfer velocity means significantly less bounce-back and overspray in enclosed spaces compared to high-pressure guns. For waterborne cabinet lacquers and wood finishes, the 1.3mm nozzle at 1.6–2.0 bar delivers the fine atomization these materials need without the orange peel risk that comes from over-pressure atomization. Many furniture finishing shops run HVLP exclusively for exactly this reason.

A: Metallic streaking with HVLP guns typically comes from inconsistent fan-top-to-bottom pressure distribution — the center of the fan is heavier than the edges, causing metallic flake to orient differently across the pass. The PRD-626's precision atomization design maintains consistent droplet density across the full fan width at optimal distance. For metallics, the technique discipline matters as much as the gun: maintain a consistent 20cm distance, keep your arm speed steady, and use full wet coats rather than building up dry mist passes. The PRD-626 gives you the consistent delivery platform — the technique determines the final result.

A: Each is optimized for a different primary use:

PRD-625 (MP) — Your priority is speed and versatility across base coat and clear coat. MP atomization gives you the fastest coverage with even distribution. Best all-rounder in the series.
PRD-626 (HVLP) — Your priority is paint savings, VOC compliance, or working in environments where overspray control matters (enclosed spaces, furniture shops, production environments). HVLP is the most material-efficient option.
PRD-627 (Split Nozzle + Integrated Valve) — Your priority is clear coat and top coat finish quality, and you want the tightest possible sealing with split-nozzle atomization precision. The engineering focus is on leak-free operation and metallic/clear coat finish performance.
Most professional shops eventually run a 626 for base and a 627 for clear — the 625 is the natural starting point if you need one gun for both.
