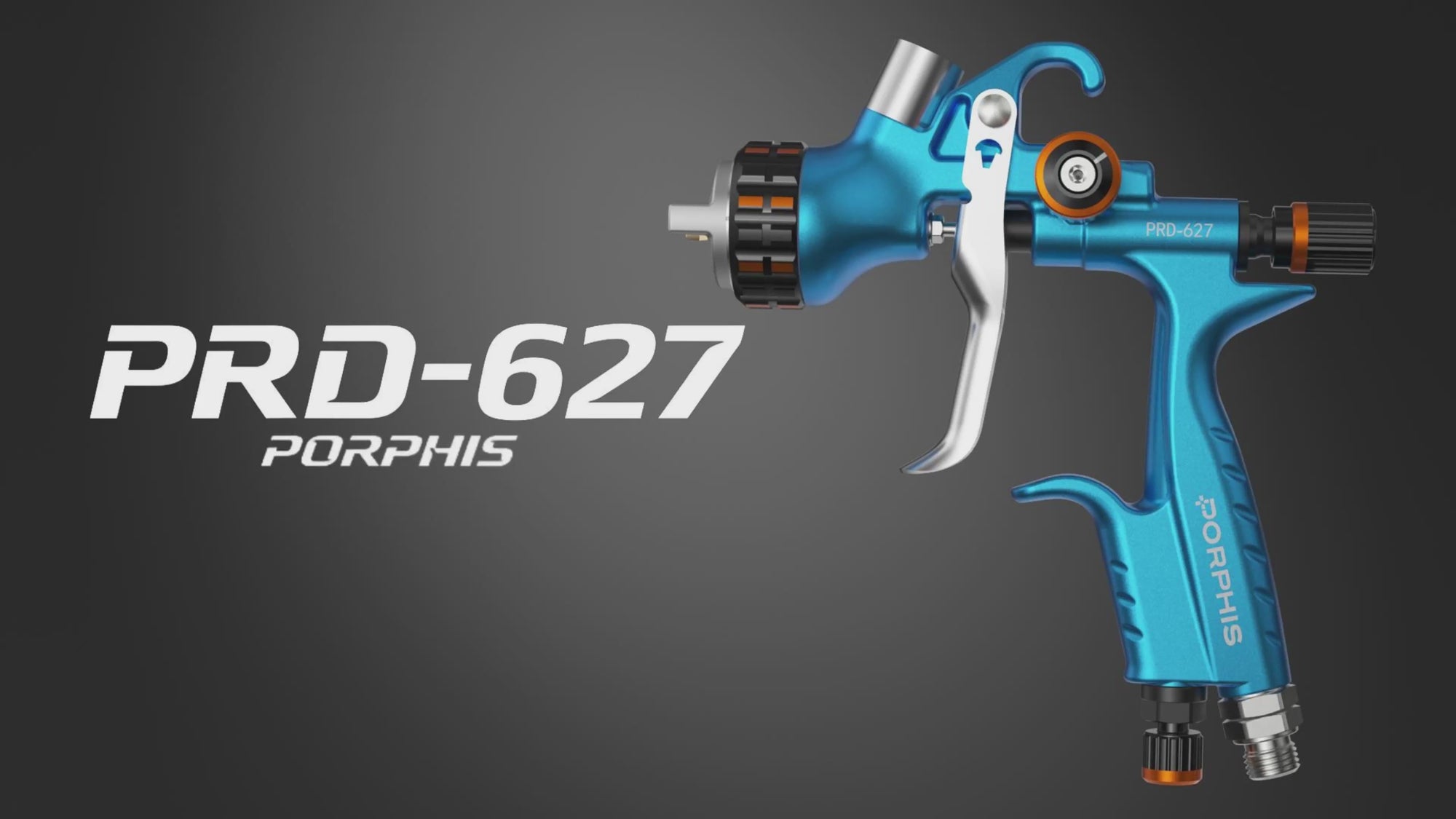

A: In conventional spray guns, the needle and air valve are separate mechanical components — meaning two potential leak points, two wear surfaces, and two things that can go out of alignment over time. The PRD-627's patented integrated needle valve design combines both functions into a single precision-machined unit. The result: a tighter factory seal from day one, less mechanical play as the gun wears in, and a noticeably more consistent trigger response. If you've ever had a gun that started leaking air or dripping paint around the trigger after a few months of use, that's exactly the failure mode this design eliminates.

A: Both use VS Split Nozzle technology — the same principle of splitting the paint flow through a dual-runner design to improve mixing efficiency and atomization uniformity. The difference is in the overall gun architecture: the PRD-717 is built on the PRD-71 series body with its self-cleaning air cap system, while the PRD-627 pairs the Split Nozzle with the integrated needle valve structure and the patented flow compression nut set unique to the PRD-62 series. The 627 is the right choice if you want Split Nozzle atomization quality in a gun engineered around leak-prevention and sealing performance as primary design priorities.

A: Metallic and pearl finishes are unforgiving — uneven droplet distribution shows as mottling or sparkle shift when viewed at different angles. The PRD-627's Split Nozzle technology creates a more uniform droplet size distribution than a conventional single-runner nozzle, which is specifically what metallic and pearl clears need. The air diversion technology ensures consistent top-to-bottom fan coverage, eliminating the heavy-center/thin-edge problem that causes color variation across a panel. Painters using the 627 on Yamaha Deep Purplish Blue and similar demanding metallics have reported finish quality that holds up under direct light inspection.

A: It's real, and it matters most in two specific situations: all-day production spraying and awkward-angle work (rocker panels, tight interiors). The index finger rest redistributes grip pressure away from your trigger finger, which is the first finger to fatigue during extended sessions. After 4–5 hours of continuous spraying, the difference between a gun with a finger rest and one without is measurable in hand steadiness — and hand steadiness directly affects how consistent your spray distance and speed are in the final hour of a shift. If you spray casually once a month, you won't notice. If you spray professionally every day, you will.

A: The PRD-627 operates at 1.3–1.8 bar inlet pressure and is optimized for clear coat and top coat viscosities. For standard automotive 2K clears thinned to manufacturer specification (typically 14–18 seconds in a DIN4 cup), the Split Nozzle handles the material without clogging risk. For thicker unmixed 2K clear or high-solid clears that require minimal thinning, start at 1.5 bar and increase incrementally. The VS nozzle runner design specifically reduces clogging risk with higher-viscosity materials compared to conventional single-passage nozzles — this is one of its core engineering advantages.

A: The flow compression nut set creates a mechanically locked fluid seal between the nozzle assembly and the gun body. In standard guns, the nozzle is threaded on and relies on torque alone to maintain the seal — vibration and thermal cycling during use can cause micro-loosening that leads to paint seeping around the nozzle threads. The PRD-627's compression nut system adds a secondary mechanical locking action that maintains seal integrity regardless of thermal expansion or vibration. In practice: no paint weeping around the nozzle, no air leaks at the fluid tip junction, and a consistent spray pattern that doesn't drift as the gun heats up during a long session.

A: The 14-test PRD durability standard covers trigger cycle life, needle actuation wear, seal compression fatigue, corrosion resistance of fluid-path components, and drop/impact resistance. In practical terms: the PRD-627 is engineered for daily professional use across automotive, furniture, and industrial coating environments — not occasional hobbyist use. Key components use corrosion-resistant alloys, and the modular construction means individual worn parts are replaceable through the PRD-62 series repair kit rather than requiring full gun replacement. For a professional running this gun 5 days a week, the design intent is years of service, not months.
