Compressor pequeno, ótimos resultados
– Sem necessidade de atualização.

Muitos usuários de "faça você mesmo" só percebem depois de comprar uma pistola de pulverização que seu compressor doméstico simplesmente não consegue acompanhar. A pressão cai, a atomização se desfaz e o acabamento fica áspero como lixa.
A PRD-510 utiliza a tecnologia LVLP (Baixo Volume Baixa Pressão), consumindo apenas 160 L/min (5,7 CFM) — muito menos do que as pistolas de pulverização HVLP tradicionais (12–15 CFM). Seu pequeno compressor existente (8–24L) pode acioná-la com facilidade, para que você não precise atualizar seu equipamento. O dinheiro que você economiza pode comprar várias latas de tinta de boa qualidade.

Configure e esqueça
— Spray consistente sempre.

Muitas pistolas de pulverização básicas têm um design de válvula de ar simples. Mesmo uma pequena flutuação de pressão pode fazer a entrega de fluido oscilar - o padrão de pulverização que você acabou de ajustar começa a distorcer após algumas passagens. O resultado é um acabamento irregular que requer retrabalho e lixamento.
A PRD-510 apresenta uma estrutura de válvula de ar integrada patenteada, com passagens de ar precisamente projetadas para melhor vedação e saída de pressão mais estável. Combinado com um gatilho suave, ele oferece um fluxo de fluido consistente, seja pulverizando contínua ou intermitentemente, proporcionando um acabamento uniforme e suave. O tempo que você economiza com retrabalho é suficiente para pintar outra peça.

Aderência antideslizante, mesmo com tinta nas mãos.

Durante a pulverização, é inevitável que suas mãos fiquem com tinta ou solvente. Corpos de pistolas comuns tendem a escorregar, forçando você a apertar mais. Seu pulso rapidamente se cansa e sua precisão na pulverização diminui.
A PRD-510 possui um corpo de alumínio forjado com design de empunhadura antiderrapante. Mesmo com óleo ou tinta nas mãos, você mantém um controle firme. Combinada com seu corpo leve (apenas 460g), ela não fadiga suas mãos durante longas sessões, permitindo que você se concentre no acabamento em vez de lutar com sua ferramenta.

Sem ferramentas, limpeza rápida, sem entupimentos
— Limpeza simplificada.

Após cada sessão de pulverização, a limpeza da sua pistola parece sempre uma "batalha de ferramentas"? Encontrar chaves, desparafusar parafusos, remover molas, peças caindo por todo o lado… Pior ainda, depois de pulverizar verniz, uma camada de tinta endurecida acumula-se na capa de ar e no bico, causando entupimentos na próxima vez que a utilizar.
O PRD‑510 apresenta um design modular de desengate rápido. Os componentes principais podem ser desmontados à mão — sem necessidade de ferramentas. As passagens de fluido na capa de ar e no bico são otimizadas para resistir ao acúmulo de tinta, reduzindo muito a chance de entupimento. Quando terminar de pulverizar, basta desmontá-lo, mergulhá-lo, enxaguá-lo — em alguns minutos e está pronto. A sua ferramenta permanece em ótimas condições, pronta para pulverizar na próxima vez que a pegar.

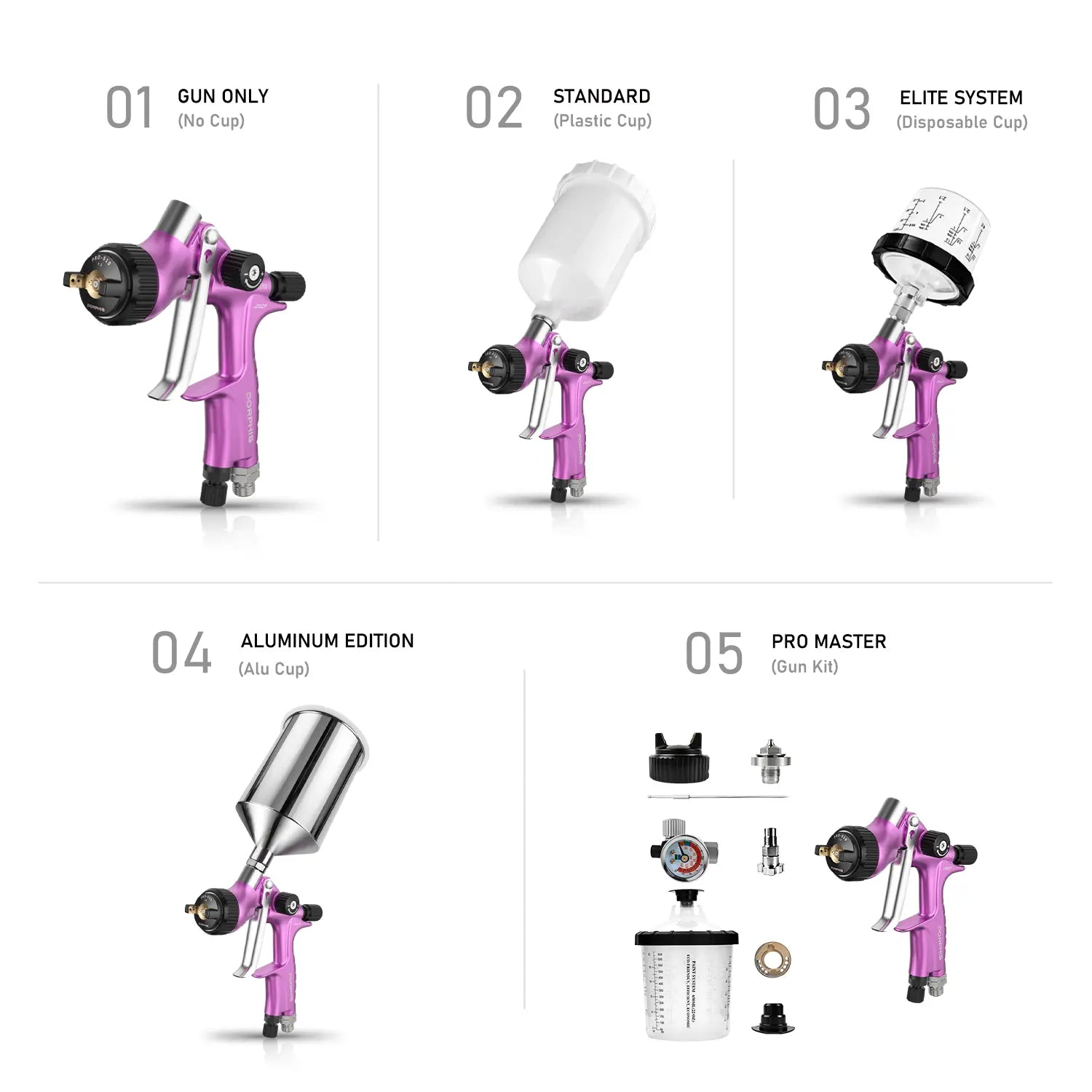

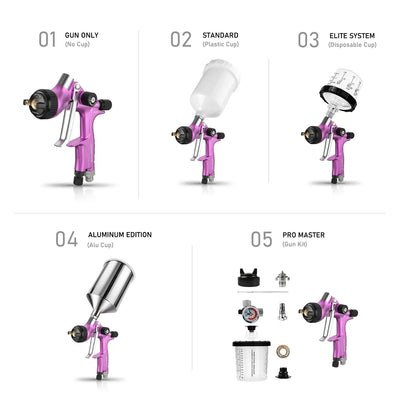

Qual configuração do PRD-510 você deve escolher?

Especificações Técnicas

Especificação
Tamanho do Bico

1.0/1.3mm

Pressão de Operação

1-1.5bar

Consumo de Ar

160/5.7 CFM

Consumo de Fluido

60 ml/min

Distância de Pulverização

150 mm

Padrão de Pulverização

120-200 mm

Tamanho da Rosca do Canal de Revestimento

Macho M16*1.5

Tamanho da Rosca de Entrada

G 1/4

Materiais e Processos
Corpo da Pistola

Alumínio forjado

Tratamento de superfície

Anodização

Canal de revestimento

Aço inoxidável

Bico da Agulha

Aço inoxidável

Conector de Entrada

Aço inoxidável

Capa de Ar

Latão

Incluído na Caixa

  • Copo branco de 600ml

  • Manual

  • Kit de serviço

  • Pistola de pulverização

FAQs - PRD-510

Posso pulverizar verniz/base diretamente da caixa?

A: Para obter melhores resultados, recomendamos um "teste de pulverização inicial" antes de carregar a tinta. Basta adicionar uma pequena quantidade de diluente para verificar o padrão do leque e o fluxo do fluido. Isso também lubrifica a vedação da agulha e garante que sua primeira camada seja impecável.



Sua pistola de pulverização requer um compressor de ar potente? Preciso de equipamentos complexos de secagem de ar?

A:Em comparação com as pistolas tradicionais, a nossa tecnologia LVLP otimiza as passagens de ar e reduz a sensibilidade à humidade ambiente em cerca de 15%. No entanto, para obter um acabamento espelhado (especialmente para revestimentos transparentes de alto brilho), ainda recomendamos a instalação de um simples separador de óleo e água na linha de ar. Isso garante uma atomização fina e estável, independentemente da estação.

Meu compressor tem apenas 8L / 2HP – ele consegue acionar o PRD-510?

Com certeza. O PRD-510 consome apenas 160 L/min (5.7 CFM). Um pequeno compressor de 8 a 24 litros pode acioná-lo facilmente – não é necessário fazer upgrade.

A pulverização LVLP é muito lenta? É adequada para pintar um carro inteiro?

R: Esse é um equívoco comum. Embora o LVLP seja conhecido por seu baixo consumo de ar, nossa tecnologia de controle de alto fluxo permite uma saída generosa de fluido mesmo em baixa pressão. Para reparos localizados, é tão preciso quanto um bisturi; para pintura de carros inteiros, basta combiná-lo com um bico de 1,4 mm ou 1,5 mm. A velocidade de aplicação real é comparável às pistolas de pulverização convencionais, enquanto economiza cerca de 30% do desperdício de tinta.

O bico de ar e o bico são duráveis? Eles arranham tão facilmente quanto outras marcas?

R:Nossas capas de ar são feitas de alumínio de aviação de alta dureza com um acabamento anodizado endurecido secundário. Cada conjunto de bico é inspecionado visualmente antes de sair da fábrica para garantir que não há rebarbas ou arranhões. Mesmo sob exposição prolongada a solventes, a superfície resistente ao desgaste permanece lisa, evitando o acúmulo de tinta e tornando a limpeza extremamente simples.


Vocês oferecem conjuntos de bicos diferentes? É difícil trocá-los?

R: Sim, oferecemos conjuntos completos de 1,3 mm a 1,8 mm. Ao contrário dos problemas de compatibilidade encontrados com alguns concorrentes, nossas agulhas, bicos e capas de ar são precisamente ajustados em módulo. Usando apenas uma chave, você pode trocar o conjunto em menos de um minuto, permitindo que sua pistola de pintura alterne perfeitamente entre primer, base e verniz.




A agulha de vedação vazará e causará gotejamento ou vazamento de tinta?

R: A nossa série LVLP utiliza componentes de vedação de Teflon de alta precisão, com agulha e bico que se encaixam perfeitamente. Mesmo sob uso intenso, a agulha retorna totalmente para evitar gotejamentos. Se um impacto acidental danificar a vedação, o nosso design permite um ajuste rápido da vedação sem ferramentas.






Qual é a vantagem sobre concorrentes como o InoKraft Drizzle D1 PRO?

A:Na mesma faixa de preço, o PRD-510 oferece maior durabilidade (núcleo todo em metal), menor consumo de ar (5,7 CFM) e maior transferência. Muitos usuários relatam que a uniformidade de atomização e o controle do gatilho são melhores do que os concorrentes com preços semelhantes.
