PRD-626 Automotive Paint Gun Kit – Put the Paint on Your Project, Not in the Air

What’s the most frustrating thing about spraying? Paint drifting away before it even hits the surface. The PRD‑626 automotive paint gun kit is built to solve exactly that.

It uses HVLP (High Volume Low Pressure) technology – not blasting paint out with brute force, but delivering it with a gentle, high‑volume airflow. The result: noticeably less overspray, smoother finishes, and a smaller paint bill.

💡 Why choose the 626?

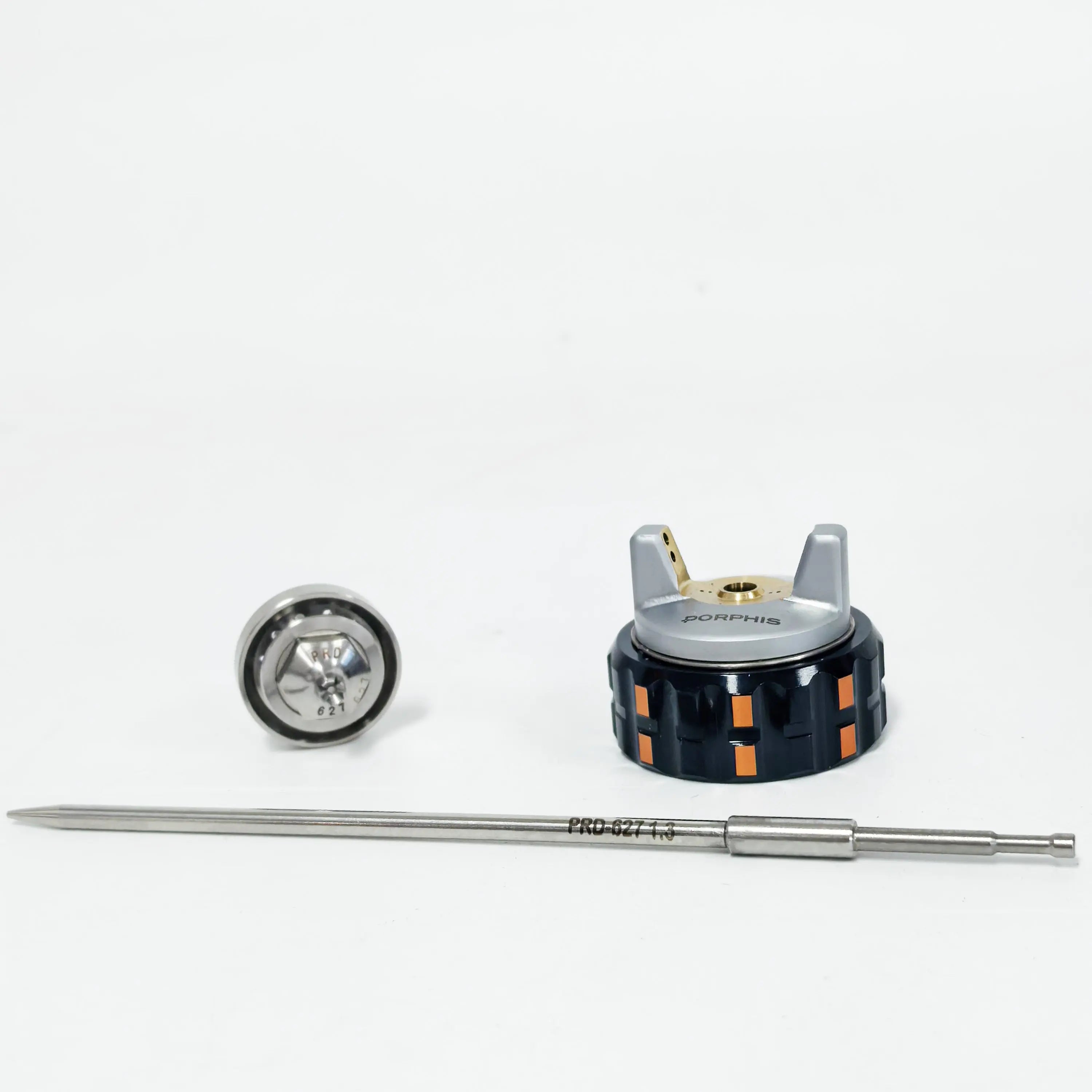

Compatible with almost everything – Water‑based, solvent‑based, 1K, 2K. The 1.3mm nozzle is the sweet spot for basecoats and clear coats.
Effortless to run – Works at just 23–32 PSI, gentle on your compressor, yet atomization is as fine as high‑end guns.
No fuss, no rust – Nozzle, needle, and fluid passages are all stainless steel. Soak in solvents, scrub, rinse – no corrosion.
No more tangled hoses – Stainless steel swivel air inlet lets the hose move freely without kinking.
Easy on your wrist – Forged aluminum body, well‑balanced weight. Spray a whole morning without fatigue.

📐 Specs (just the essentials)

Parameter	Value
Atomization type	HVLP
Nozzle size	1.3 mm
Operating pressure	23–32 PSI
Air consumption	430 L/min (15.2 CFM)
Fluid output	190 ml/min
Spray pattern	260–290 mm
Recommended distance	170 mm

🎯 Who is it for?

Auto body shops – Basecoats and clear coats, one pass, less sanding.
Furniture makers – Even clear coats, no wasted material.
Serious DIYers – Upgrade from a starter gun and experience true high‑transfer efficiency.

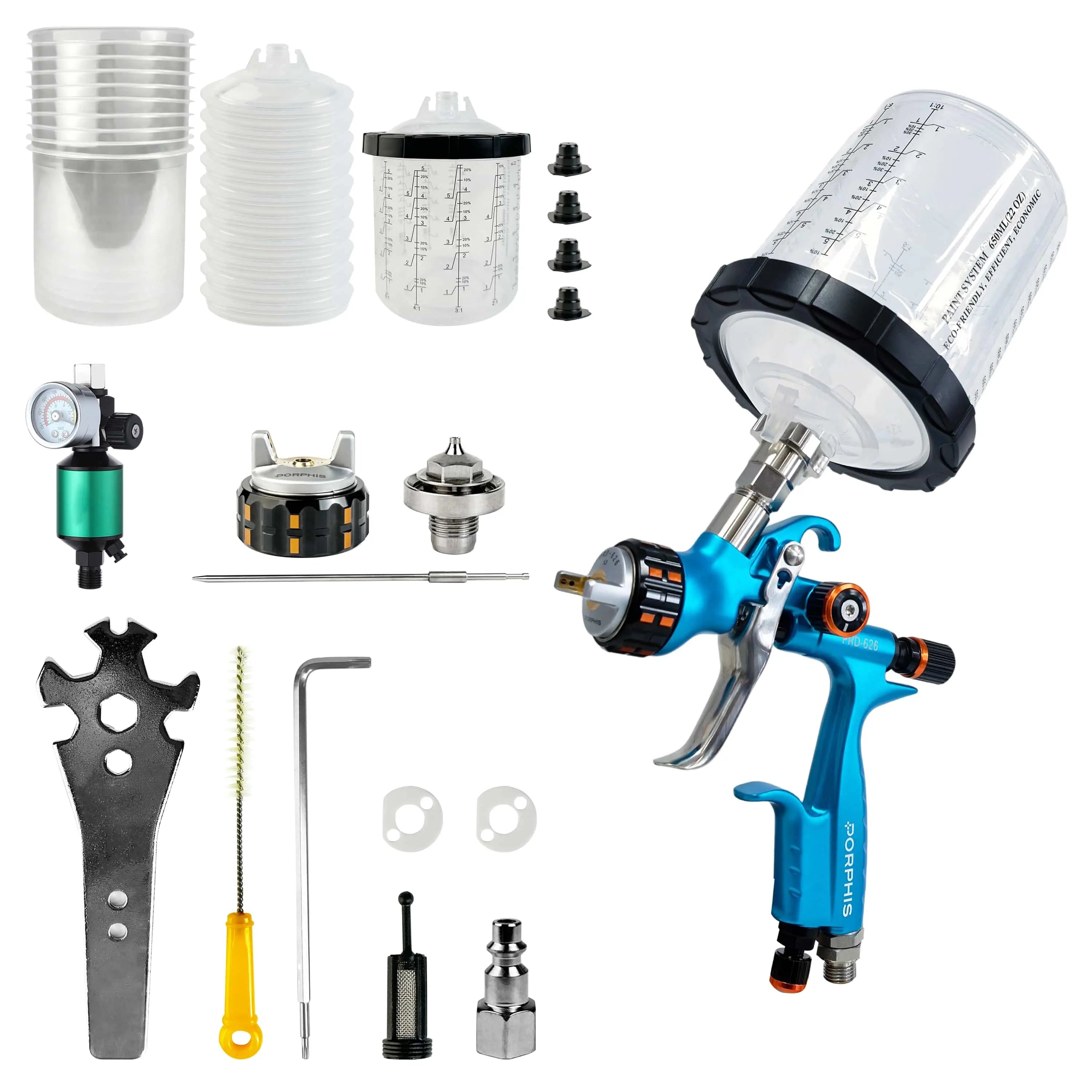

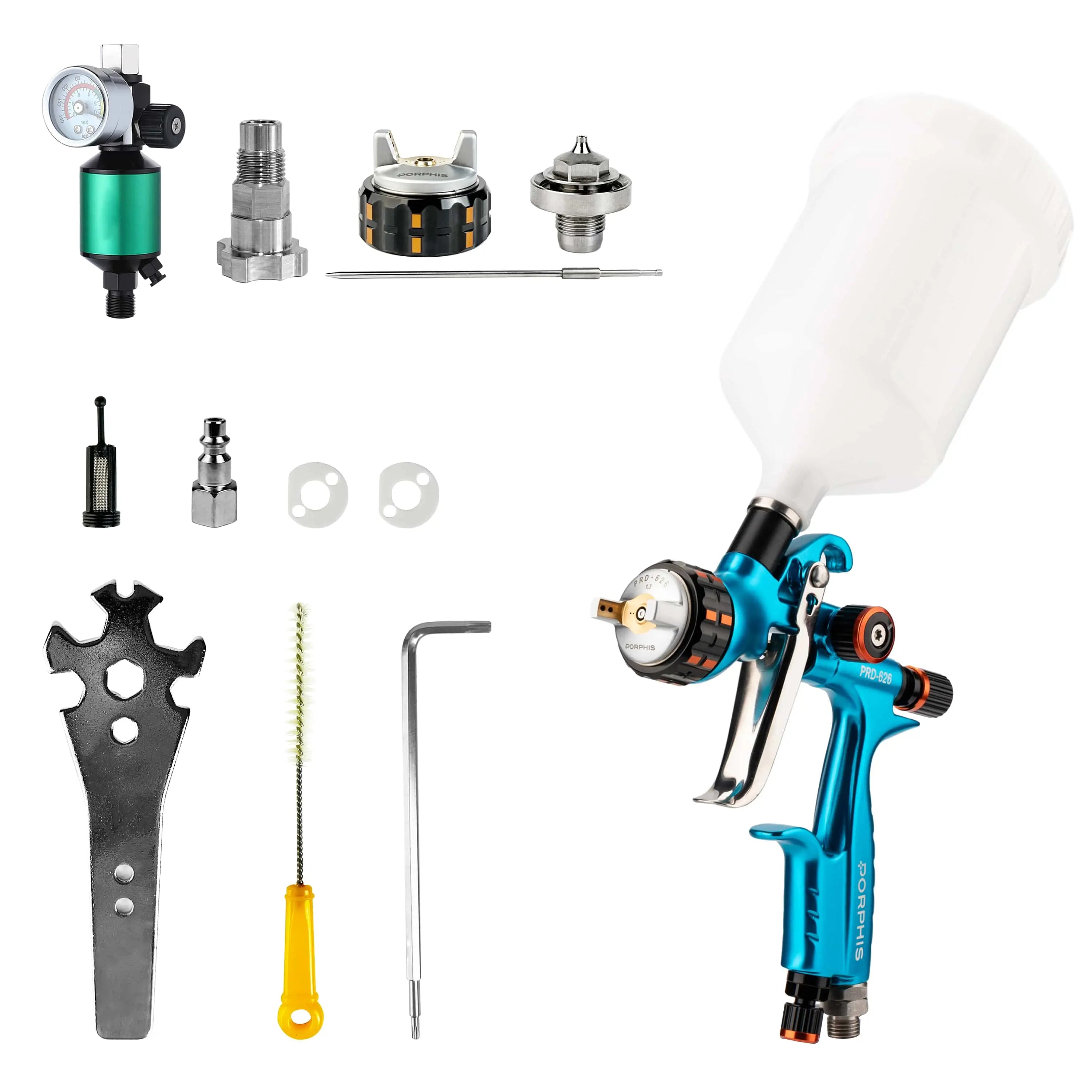

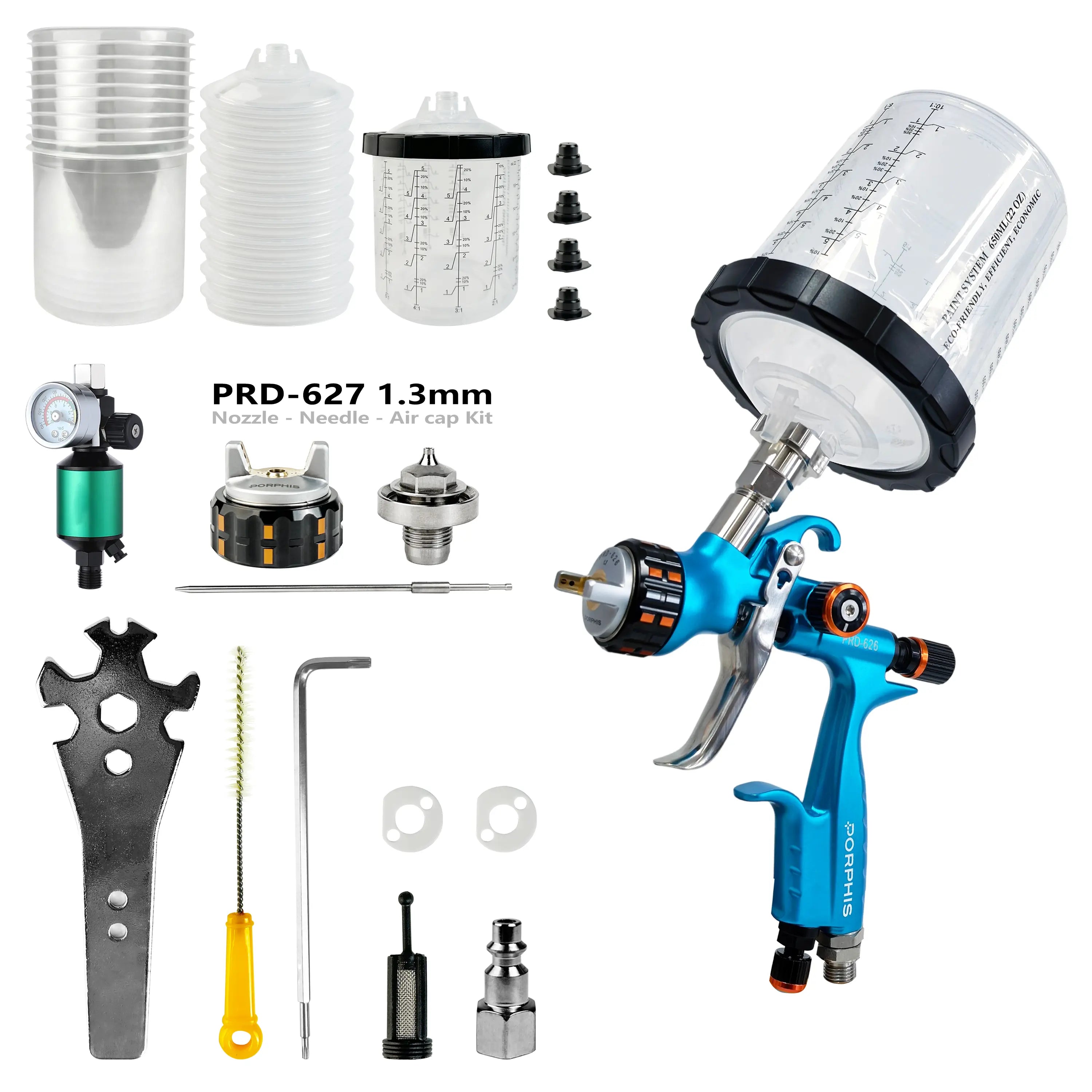

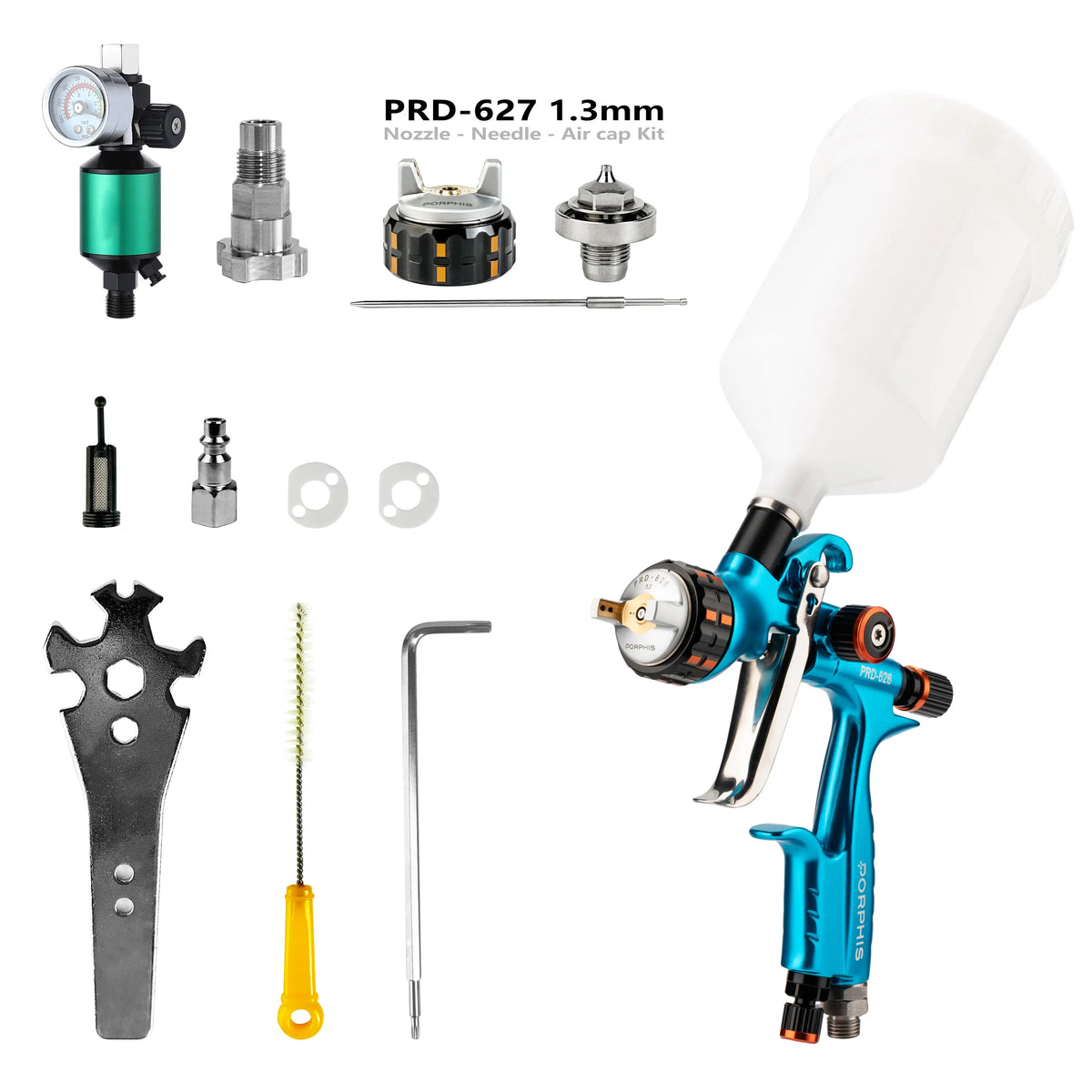

📦 In the box

PRD‑626 spray gun
600ml plastic cup
Cleaning brush, wrench
QR card (scan to watch cleaning video)
