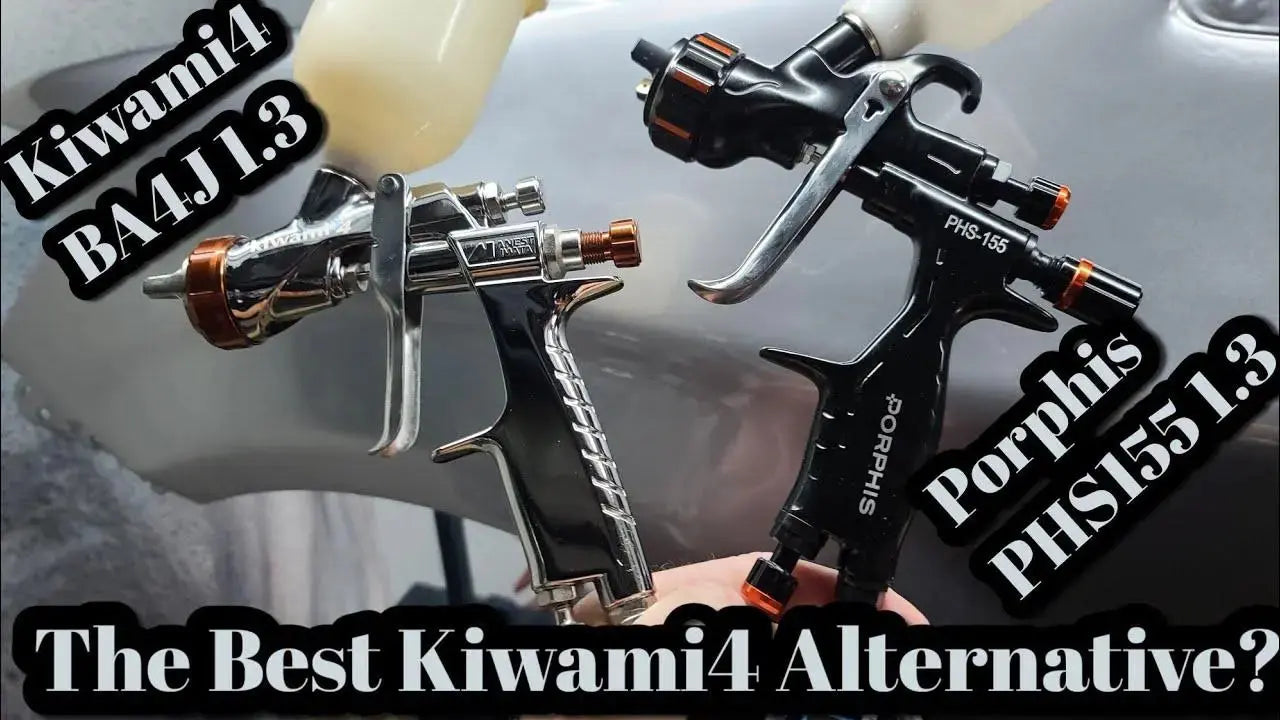

Spray Gun Comparison: PHS-155 vs. Iwata Kiwami4 (BA4J)

1. Executive Context: The Shifting Landscape of Low-Consumption Spray Equipment

The automotive refinishing market has recently undergone a significant disruption following the withdrawal of the Iwata Kiwami4 (specifically the BA4J model) from several global territories. From a consultancy perspective, this move appears to be a strategic maneuvers by Anest Iwata to prevent the Kiwami4 from "stepping on the toes" of the more expensive W400 Bellaria—a gun with nearly identical internals but a significantly higher price point in Western markets. This exit has created a critical vacuum for professionals who require high-tier finish quality without the high-end pneumatic demand of HVLP systems.

2. Technical Specification & Air Consumption Benchmarking

In a professional environment, air consumption (CFM) is the primary constraint. Misleading manufacturer specifications often lead to equipment choices that overtax small-to-medium compressor systems, resulting in pressure drops that compromise clear coat atomization. For a "low-air" gun to be considered a Kiwami4 replacement, it must operate efficiently at or below 9 CFM.

Comparative Technical Specifications

While the PORPHIS documentation lists a demand of 10.5 CFM, real-world testing demonstrates that the air demand is significantly lower. In side-by-side gauge swaps, the PHS-155 showed a negligible pressure variance of only 0.1 bar compared to the Kiwami4. The actual air consumption gap is approximately 0.5 CFM, confirming that the PHS-155 is a true low-consumption alternative that maintains consistent performance on the same pneumatic infrastructure as the Iwata.

PORPHIS PHS-155	PORPHIS PHS-155 Spraying effect
Iwata Kiwami4 (BA4J)	Iwata Kiwami4 (BA4J) Spraying effect

3. Manufacturing Excellence & Design Architecture

Professional equipment selection requires a distinction between "shelf-appeal" and functional engineering. While high-luster chrome plating is aesthetically pleasing and offers high resistance to solvent-based degradation, it does not necessarily correlate with internal longevity or atomization efficiency.

The Iwata Kiwami4 features a premium chrome-plated body, whereas the PORPHIS PHS-155 utilizes a standard coated finish—notably, it is not even anodized. While the PHS-155 lacks the mirror-like luster of the Iwata, the internal architecture provides a distinct engineering advantage: a "Seal-Less" tip design.

Traditional professional guns from brands like SATA or Ani utilize perishable sealing rings at the fluid tip. When these seals degrade, they cause "diagnostic indicators" of failure, such as air bubbling into the gravity cup and a pulsing spray pattern. By eliminating the tip seal entirely, the PHS-155 removes a common failure point found even in brand-new high-end equipment, ensuring long-term maintenance cycles are simplified and reliability is maximized.

4. Longitudinal Reliability & Failure Analysis

Total Cost of Ownership (TCO) is heavily influenced by tool downtime. A systemic manufacturing flaw has been identified in the Iwata Kiwami4 regarding the Rear Needle Seal. In a consultancy-led field study, five separate Iwata units developed air leaks from the needle guide at the rear of the gun when the trigger was depressed. In several instances, this failure occurred within only four months of service.

In contrast, the PORPHIS PHS-155 has demonstrated exceptional stability. Units subjected to identical professional cleaning and maintenance cycles remained fully operational without seal failure over a 1.5-year evaluation period.

• Needle Guide Integrity:
  Demonstrated superior longevity of the rear air seal, bypassing the systemic failure modes documented in the Iwata Kiwami4 line.
• Elimination of Perishable Tip Seals:
  The seal-less architecture prevents the bubbling and pulsing issues that plague O-ring-dependent designs from competitors.
• Active Manufacturing Support:
  Reliability is backed by an active manufacturer currently re-tooling molds for improved quality and supplying individual replacement parts directly.

5. Performance Evaluation in Adverse Conditions

Achieving professional results in sub-optimal environments—specifically low temperatures (12°C) with high-viscosity materials—is the true test of a gun’s atomization efficiency. High-viscosity clear coats, such as U-Pol, require a gun that can effectively "work the paint" to prevent orange peel or excessive texture.

Under these stress tests, the PHS-155 demonstrated superior atomization efficiency. While the Kiwami4 is a capable performer, the PHS-155 matched and occasionally exceeded its ability to flow out viscous material in cold climates, maintaining a smoother finish with less tendency to run when pushed.

• Iwata Kiwami4 (BA4J):
  Produced a high-tier professional finish, though more susceptible to application errors (runs) when attempting to force high-viscosity flow in cold temperatures.
• PORPHIS PHS-155:
  Provided a "bang for buck" ratio that surpasses intermediate-tier competitors. The atomization capability ensures a smooth, consistent lay-down of material even when the clear coat has not been pre-heated to manage viscosity.


6. Economic Value & Procurement Strategy

There is a profound performance chasm between entry-level "budget" guns and professional equipment. Tools like the NTools 4000B ($40–$45) or the R500 offer value for beginners but fail to meet professional standards due to their higher pressure requirements (2.5 bar / 35+ PSI), which increases air consumption and taxes the compressor.

• Value-Pro-Position:
  The discontinued Iwata retailed for $190–$200. The PORPHIS PHS-155 delivers equivalent performance for approximately $125 landed, representing a 35% cost reduction without a decrease in finish quality.
• Longevity and Support:
  Unlike disposable generic guns, the manufacturer’s investment in re-tooling and parts support ensures the PHS-155 remains a long-term asset in a professional's kit.

1. Price Advantage:
   Significant capital savings over the Iwata while providing a more durable internal seal configuration.
2. Parts Support:
   Direct access to spares ensures the tool can be maintained through heavy-use cycles.
3. Longevity:
   Proven 1.5-year stable performance vs. the 4-month failure window of recent Iwata units.

7. Professional Recommendation & Conclusion

The PORPHIS PHS-155 is not a "budget compromise" but a technically robust workhorse. It effectively renders the Kiwami4 (BA4J) obsolete by matching its low-pressure performance (29 PSI) and low air demand while offering superior seal integrity. In an industry where reliability is as important as the final finish, the PHS-155 stands as the most logical replacement for the discontinued Iwata.

Verdict:
