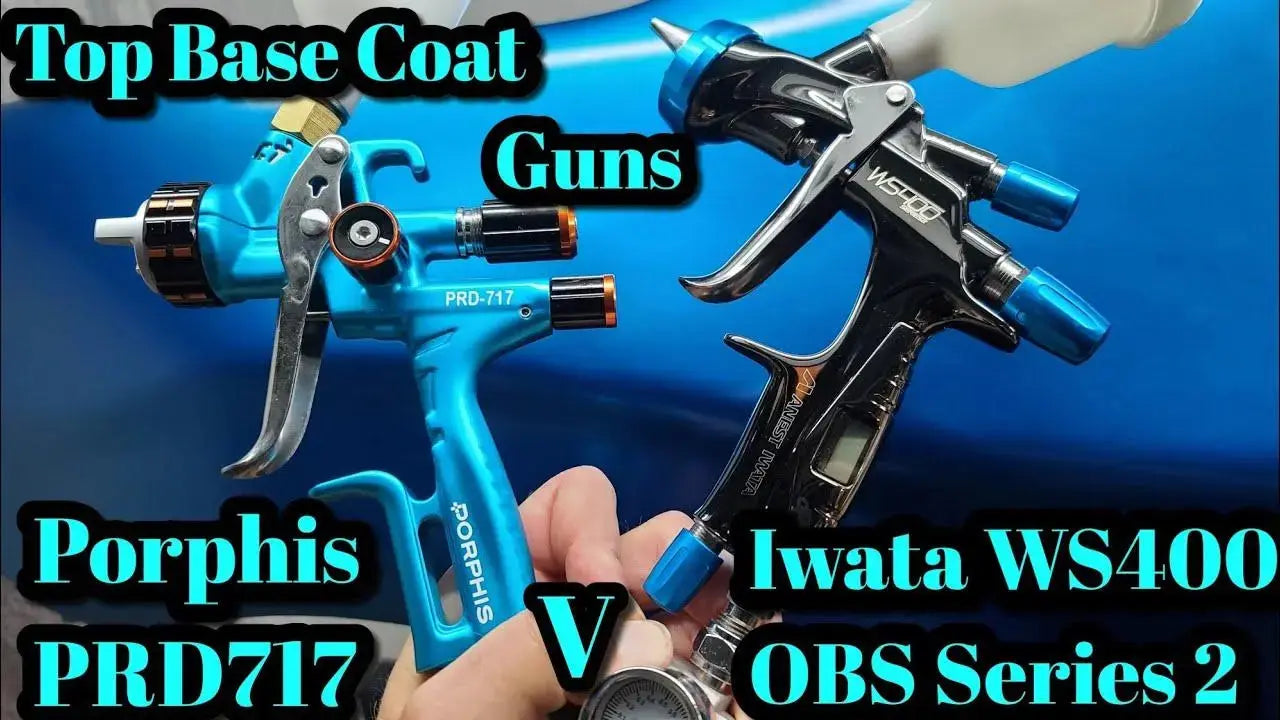

Spray Gun Comparison: PRD-717 vs. Iwata WS400 Series2 OBS

1. Introduction: The Strategic Role of Atomization Technology

In a high-production automotive refinishing environment, the selection of spray equipment is a foundational business decision. Atomization technology is not merely a matter of "laying paint"; it is the primary driver of material transfer efficiency, labor-hour reduction, and the successful execution of increasingly complex OEM finishes. Selecting the wrong tool can lead to excessive overspray, material waste, and the high cost of re-work due to metallic mottling or poor adhesion.

This report provides a technical comparative analysis of the Iwata WS400 Series 2 OBS and the PORPHIS PRD-717. Both units are evaluated specifically for their performance in solvent-based base coat systems. We will examine whether the PORPHIS, positioned at a significantly lower price point, can meet the rigorous performance standards established by the industry-benchmark Iwata. The following analysis details the mechanical and operational nuances that differentiate these two instruments.

2. Core Technology Analysis: Split-Tip Nozzle Mechanics

Split-tip nozzle technology has become the requisite standard for high-end base coat applications, particularly when dealing with pearlescent and high-metallic content. While traditional nozzles often produce a dense, oval pattern that concentrates material in the center, the split-tip design—utilized by both the Iwata and the PORPHIS—is engineered to "pre-atomize" the material at the nozzle’s edge.

• The 75% Overlap Mechanic:
  Because the pattern is elongated and less dense than traditional setups, a 75% overlap is required to ensure uniform film build.
• Mottling Prevention:
  This specific overlap prevents "tiger striping" by ensuring that metallic flakes are distributed evenly across the substrate rather than being pushed into concentrated "alleys" by a more forceful, rounded air stream.

For the senior technician, this technology offers a wider margin for error on complex colors, providing a level of particle orientation that non-split-tip guns cannot replicate.

3. Comparative Operational Dynamics: Pressure and Air Consumption

Operational efficiency is dictated by a gun's ability to perform within the limitations of a shop's air supply and extraction capabilities. High air consumption (CFM) not only taxes compressor systems but also increases the environmental "cloud" within the booth.

Technical Analysis of Flow Dynamics:
While both units utilize a 3-turn fluid setting (with 4 turns being full capacity), their air requirements differ significantly from standard HVLP units. The WS400 OBS is specifically preferred for solvent work because it draws only 12 CFM, compared to the 16.5 CFM required by its HVLP sibling, the LS400. This 27% reduction in air demand makes the WS400 more versatile for shops without industrial-scale air reserves.

Consultant’s Note:
Diaphragm Regulators To achieve the results cited in this report, the use of a diaphragm regulator is mandatory. Standard regulators often allow an initial "surge" of air when the trigger is pulled, which disrupts pattern consistency. A diaphragm regulator ensures a constant, even supply, preventing the "fierce" initial blast that can cause dry spots or uneven metallic orientation.

Iwata WS400 Series2 OBS	Iwata WS400 Series2 OBS Spraying Effect
PORPHIS PRD-717	PORPHIS PRD-717 Spraying Effect

4. Material Application Performance: Handling Complex Base Coats

The Iwata WS400 "OBS" (Optimal Basecoat Settings) represents a critical design evolution. In the Series 2, Iwata reduced the size of the air holes surrounding the tip. This modification was a direct response to the "fierce" nature of the Series 1, which often dried solvent material too quickly in warmer climates, leading to poor adhesion and a "sandpaper" finish. The OBS refinement allows for a wetter application, ensuring better metallic lay-down and substrate "bite."

Despite the massive price disparity, the PORPHIS PRD-717 was found to equal the finish quality of the Iwata. Both units successfully atomized high-metallic solvent bases with zero evidence of striping or mottling.

• Substrate Prep:
  Sanding clear coats must be performed at 400–500 grit.
• Seasonal Solution Adjustment:
  For cleaning, a 90/10 alcohol-to-water mix is standard in winter. However, in summer, the water content must be increased to 20% to account for rapid evaporation and ensure the substrate remains sufficiently wet for a deep clean.
• Critical Cure Time Warning:
  If applying solvent base over a recently sprayed 2K clear (e.g., a "save" on a flawed clear coat), the clear must be several days old (ideally weeks). Solvents in the new base coat can react aggressively with uncured clear, leading to lifting or solvent trap.
• Thermal Management:
  Material should be heated to 32–35°C (95°F). This reduces flash-off time and minimizes the window for environmental contaminants (nibs) to land in the wet film.

5. Ergonomics, Build Quality, and Utility Features

The long-term reliability of a spray gun is often determined by its place of manufacture. The Iwata WS400 is an aesthetic masterpiece, but it possesses a known failure point: the digital version. The digital models are manufactured in Italy and have exhibited chronic chrome-tarnishing and reliability issues. It is my professional recommendation to specify only the non-digital WS400, which is manufactured in Japan and maintains superior quality control.

The PORPHIS PRD-717 offers a distinct utility advantage with its tactile "Click System" on the adjustment dials. In a production environment, the ability to feel and hear adjustments (e.g., "three clicks in") allows a painter to return to precise settings after cleaning or switching materials without visual guesswork. This feature promotes consistency across different shifts and painters.

6. Economic Analysis and Procurement Recommendation

The final evaluation of these tools must be viewed through the lens of "Total Cost of Ownership" vs. "Initial Capital Expenditure."

The 3:1 Strategic Logic: The Iwata WS400 Series 2 OBS is a prestigious instrument, costing approximately three times that of the PORPHIS PRD-717. While the Iwata provides a "Show Finish" precision and unmatched brand heritage, the PORPHIS delivers an identical "Factory Finish" result—matching the subtle orange peel and texture found on modern OEM coatings.

• The Iwata WS400 Series 2 OBS remains the choice for the artisan painter who prioritizes tool prestige and the ultimate "Japanese-made" reliability of the non-digital chassis.


• The PORPHIS PRD-717 is the superior strategic choice for high-volume operations. It is the "clear winner" in value, providing elite-level atomization and identical performance to the benchmark at one-third of the cost.
