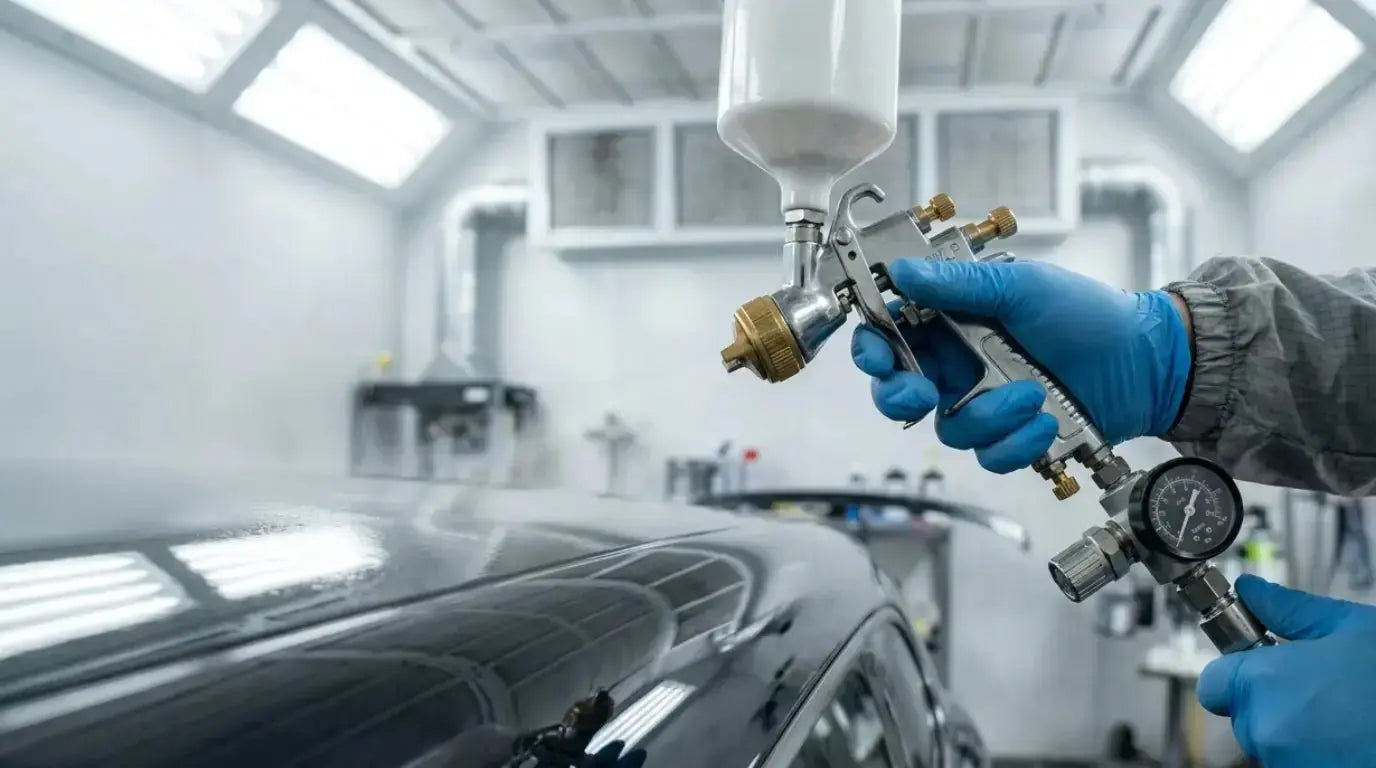

Mastering Spray Gun Air Pressure Regulation: A Comprehensive Guide for Automotive Painters

Achieving a flawless automotive paint finish depends on many variables, but few are as critical—or as misunderstood—as air pressure regulation. Even experienced painters can find themselves confused by the interaction between compressor regulators, gun-mounted controls, and the actual pressure reaching the air cap. This guide breaks down the fundamentals of spray gun pressure regulation, explains why different adjustment  configurations produce different results, and provides a step-by-step approach to setting your gun up correctly every time.

Understanding the Anatomy of Your Air Supply System

Before diving into adjustment procedures, it's essential to understand the components involved in regulating air pressure from the compressor to the spray gun nozzle.

Compressor-Side Components

The journey begins at your air compressor. Most setups include:

• Tank pressure gauge (A): This displays the pressure inside the compressor tank. It reflects the stored air volume available for use.

• Outlet pressure gauge (B): This shows the regulated pressure leaving the compressor after passing through the main regulator.

• Main air regulation valve (C): This valve controls the pressure delivered from the compressor to the air hose. Adjusting this valve changes the reading on gauge B.

Spray Gun-Side Components

Modern automotive spray guns typically feature multiple adjustment points:

• Gun inlet pressure gauge (D): Located on the gun butt or handle, this gauge shows the pressure entering the gun itself.

• Air regulation knob (E): This valve controls the air pressure within the gun body, affecting atomization.

• Inlet flow regulation knob (F): Positioned at the base of the handle, this controls the volume of air entering the gun.

• Air cap (G): The final delivery point where atomization occurs.

Understanding how these components interact is the first step toward mastering pressure regulation.

Static Pressure vs. Dynamic Pressure: The Critical Distinction

One of the most common sources of confusion is the difference between static and dynamic pressure readings.

Static pressure is the pressure measured when the gun trigger is not pulled—the system is at rest. Dynamic pressure is measured while the trigger is pulled and air is flowing through the gun.

This distinction matters enormously. Static pressure will always read higher than dynamic pressure because air is not moving through the system. When you pull the trigger, pressure drops as air escapes through the gun. The longer and narrower your air hose, the more significant this pressure drop becomes.

The golden rule: Always set your spray gun pressure with the trigger pulled. This gives you the actual working pressure your paint will experience during application.

Why the Same Pressure Reading Can Produce Different Results

A common frustration among painters is achieving the same pressure reading on the gun gauge (D) through different combinations of regulator settings, yet observing completely different airflow behavior at the air cap.

This happens because pressure and flow are related but not identical. Consider this scenario:

• Configuration 1: Compressor regulator (C) set high, inlet flow knob (F) partially closed

• Configuration 2: Compressor regulator (C) set lower, inlet flow knob (F) fully open

Both configurations might produce the same reading on gauge D (dynamic pressure). However, in Configuration 1, the partially closed F restricts air volume entering the gun, resulting in less airflow at the air cap despite having the same pressure. In Configuration 2, with F fully open, more air volume reaches the cap, producing a more powerful outflow.

This explains why two seemingly identical pressure settings can produce different spray patterns and atomization quality.

Interpreting Gauge Discrepancies: B vs. D

Many painters notice that gauge B (at the compressor outlet) and gauge D (at the gun inlet) show different readings under dynamic conditions—often with B reading higher by 1 bar or more.

This is completely normal. Pressure drops along the air hose due to friction and resistance. The longer the hose, the greater the drop. To align these two gauges, you would need to restrict flow by closing F or C, but this comes at the cost of reduced air volume reaching the gun.

The takeaway: Don't obsess over matching these readings. Focus on setting the correct pressure at the gun (gauge D) with the trigger pulled, and let the compressor regulator deliver whatever pressure is necessary to achieve that.

How Different Regulator Adjustments Affect Pressure

The Effect of Closing the Inlet Flow Knob (F)

When you close F under dynamic conditions, you're restricting the air entering the gun. This causes pressure to increase at gauge D (and B) because the same upstream pressure is being forced through a smaller opening. However, this increased pressure comes with reduced air volume—a trade-off that can compromise atomization.

The Effect of Opening the Air Regulation Knob (E)

Opening E increases the pressure reading at D (and B) under dynamic conditions. This valve controls internal gun pressure, and adjusting it changes how much of the incoming air pressure reaches the air cap.

Step-by-Step: Setting Your Spray Gun Pressure Correctly

Here's a proven method for setting your spray gun pressure that eliminates guesswork:

Step 1: Start with All Gun Controls Open

Fully open both the air regulation knob (E) and the inlet flow knob (F) on the spray gun. This removes any restrictions the gun might impose, allowing you to establish a baseline.

Step 2: Set Compressor Regulator Low

Turn the main compressor regulator (C) down to a low setting—well below your target pressure.

Step 3: Pull the Trigger and Adjust Upward

With the trigger pulled, slowly increase the pressure at the compressor regulator (C) while watching the gun gauge (D). Adjust until you reach your desired dynamic pressure at the gun.

Step 4: Fine-Tune with Gun Controls

Once the baseline pressure is established, use the gun's air regulation knob (E) for fine adjustments. Keep the inlet flow knob (F) fully open to maximize air volume reaching the cap.

Step 5: Verify the Spray Pattern

After setting pressure, test your spray pattern on a piece of cardboard or masking paper. Look for:

• Even atomization without tails or spitting

• Consistent fan pattern without heavy centers or split edges

• No excessive overspray or bounce-back

Adjust pressure up or down in small increments (2-3 PSI) until the pattern is optimal.

Recommended Pressure Ranges for Common Coatings

While specific recommendations vary by paint manufacturer and gun type, here are general starting points:

Always consult your paint manufacturer's technical data sheet for specific recommendations. These values should be used as starting points, with final adjustments made based on spray pattern evaluation.

Common Pressure Regulation Problems and Solutions

Problem: Pressure Fluctuates During Spraying

Possible causes:

• Compressor cannot keep up with air demand

• Faulty or cheap regulator on the compressor

• Water or debris in the air line affecting regulator performance

Solution: Ensure your compressor has adequate CFM for your spray gun. Consider upgrading to a higher-quality regulator if fluctuations persist.

Problem: Unable to Achieve Desired Pressure at the Gun

Possible causes:

• Excessive pressure drop through long or narrow air hose

• Restriction in the gun's air passages

• Compressor output insufficient for the gun's requirements

Solution: Use a shorter, larger-diameter hose. Clean the gun's air passages thoroughly. Verify your compressor meets the gun's CFM requirements.

Problem: Spray Pattern Has Tails or Is Uneven

Possible causes:

• Pressure too low for proper atomization

• Fluid pressure not balanced with air pressure

• Worn or damaged nozzle

Solution: Increase pressure gradually until tails disappear. Check fluid needle adjustment. Inspect and replace nozzle if worn.

The PORPHIS Advantage: Precision Engineering for Consistent Results

When it comes to achieving consistent, repeatable pressure regulation, the quality of your spray gun matters enormously. PORPHIS spray guns are engineered with precision-machined air passages and high-quality regulators that respond predictably to adjustments—eliminating the guesswork that plagues lesser guns.

For painters who need a versatile workhorse that adapts reliably to different coatings and pressure settings, the PORPHIS PRD-715 is an outstanding choice. Featuring MP (Multi-Point) atomization technology, the PRD-715 distributes air across multiple discharge points around the nozzle, creating a spray pattern where the top and bottom of the fan reach the same height simultaneously. This eliminates the common "hot center / thin edges" problem that forces painters to overlap more aggressively—with MP atomization, each pass lays down an even film from edge to edge, meaning fewer passes and a more consistent film build across the entire panel.

The PRD-715 operates at 23–31 PSI with an air consumption of 10.2 CFM, making it compatible with most professional automotive compressors. Its wide spray pattern (up to 300mm fan width at optimal distance) allows you to cover a full door panel in significantly fewer passes than a conventional nozzle of the same diameter. Painters report completing a full vehicle base coat in 20–30% less time compared to their previous guns.

What makes the PRD-715 particularly well-suited to the pressure regulation principles discussed in this guide is its forged aluminum body with anodized exterior coating and metal air distribution ring—components that deliver consistent, predictable airflow response to regulator adjustments. The patented fluid adjustment set allows for precise quantitative control of fluid output, so once you dial in the perfect pressure for a given coating, you can replicate it reliably job after job.

Whether you're spraying waterborne or solvent-based paints, basecoats or clearcoats, the PRD-715 handles the full coating system from primer surfacer through clear coat with consistent results. Its lightweight and ergonomic design—the gun body weighs only 460g—improves maneuverability during extended spraying sessions.

Frequently Asked Questions

Should I set pressure at the compressor or at the gun?

Always set pressure at the gun with the trigger pulled. The compressor regulator should be adjusted to deliver whatever pressure is necessary to achieve your target at the gun.

Why does my gun pressure drop when I pull the trigger?

This is normal and expected. Static pressure (trigger off) will always be higher than dynamic pressure (trigger pulled) because air is flowing through the system.

Can I use the gun's air adjustment knob to set operating pressure?

While you can, it's better practice to set the main pressure with the compressor regulator and use the gun's adjustment knob for fine-tuning only. Leaving the gun's controls wide open ensures maximum air volume for atomization.

How often should I check my pressure settings?

Check your dynamic pressure at the start of each painting session and whenever you change coatings. Temperature changes and compressor cycling can affect pressure readings throughout the day.

What's the difference between HVLP and conventional spray gun pressure settings?

HVLP guns are designed to operate at lower air cap pressures (maximum 10 PSI dynamic at the cap) while conventional guns typically run at higher pressures. Always follow the manufacturer's recommended pressure range for your specific gun model.

Conclusion

Mastering spray gun pressure regulation is one of the most important skills any automotive painter can develop. Understanding the relationship between compressor-side and gun-side controls, recognizing the difference between static and dynamic pressure, and knowing how different adjustment combinations affect airflow will transform your painting results.

Remember: pressure and flow are not the same thing. The same pressure reading can produce different results depending on how you've configured your system. By following the step-by-step procedure outlined here—starting with all gun controls open and adjusting from the compressor with the trigger pulled—you'll achieve consistent, repeatable results every time.

For painters serious about eliminating variables and achieving show-quality finishes, investing in precision equipment like the PORPHIS PRD-715 provides the control and consistency needed to take your work to the next level.
