Air Filter Regulator (Water & Oil Separator) PORPHIS
Air Filter Regulator (Water & Oil Separator) PORPHIS

Air Filter Regulator (Water & Oil Separator)

$146.47
Shipping calculated at checkout.
Filter
Filter: 2-Stage
Size
Size: 1/2"NPT

Tech Specs

Air inlet size：

1/2" NPT

Flow：

1,500 - 2,500 L/min

Operating Pressure：

0.86MPa、125PSI

Max Working Pressure：

1.00MPa、145PSI

Operating Temperature Range：

5–60℃、41-140℉

Drain Type：

Manual

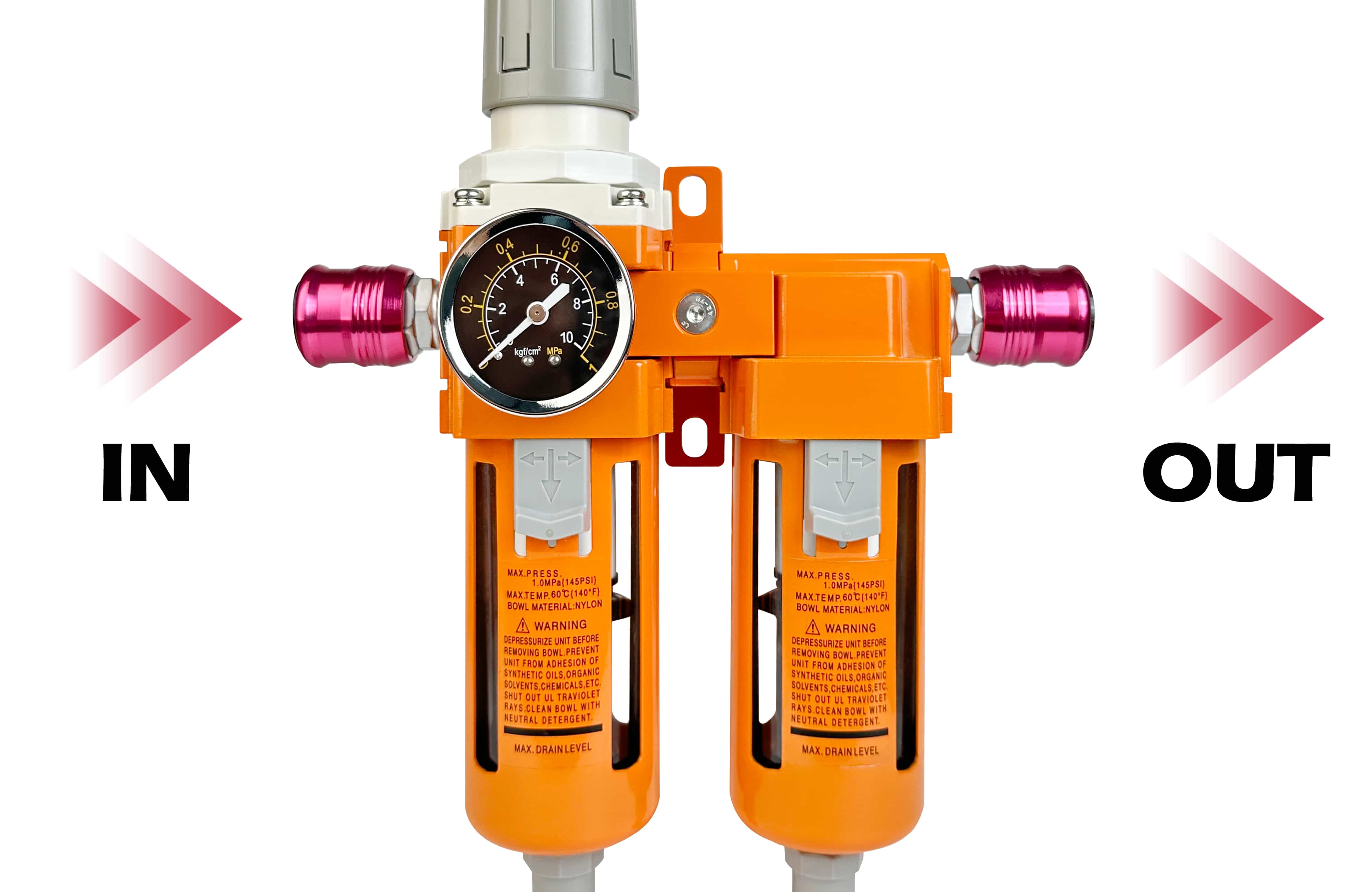

Gas Flow Direction

Pay attention to direction of air flow and arrow pointing on product body if correct, minding port and thread size if match.

Brass Filter Element

It can effectively filter impurities, dust, liquid and particles in the air.

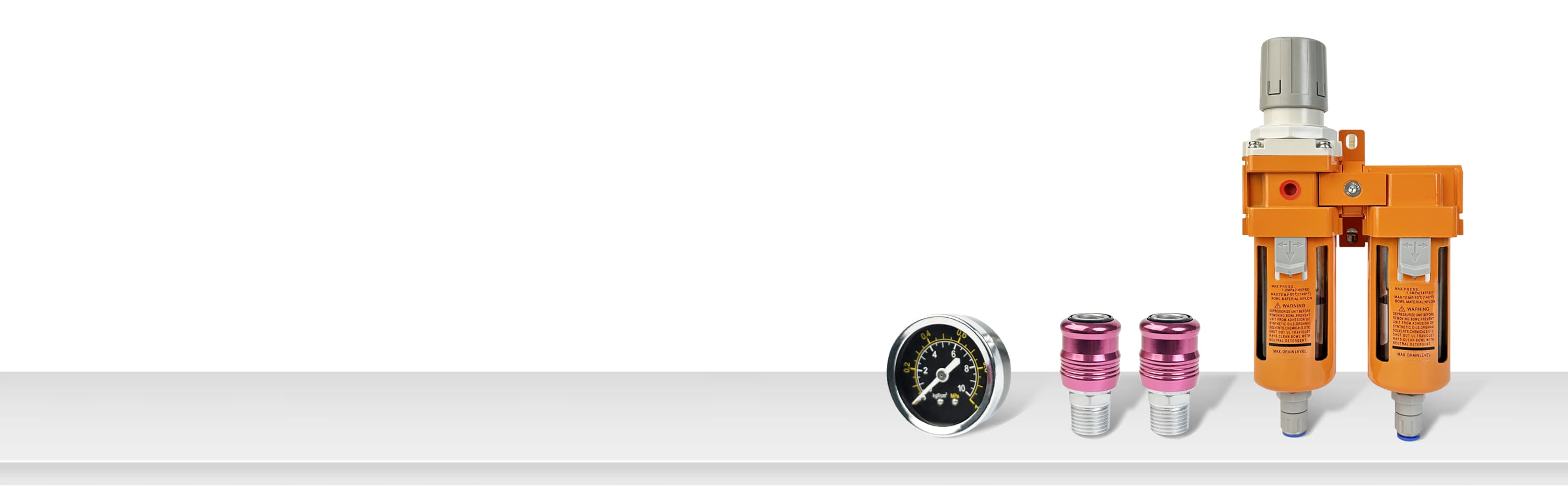

Accessory

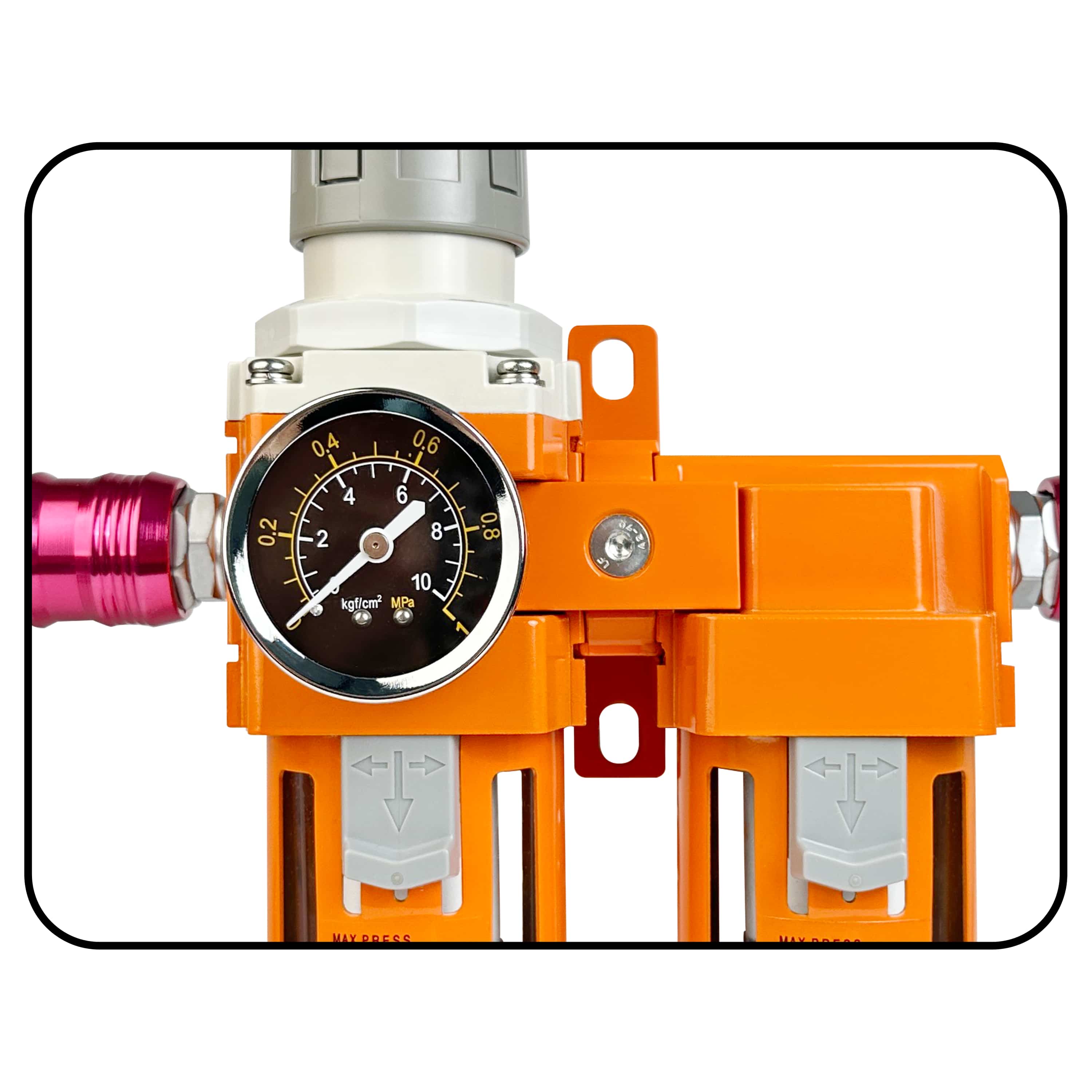

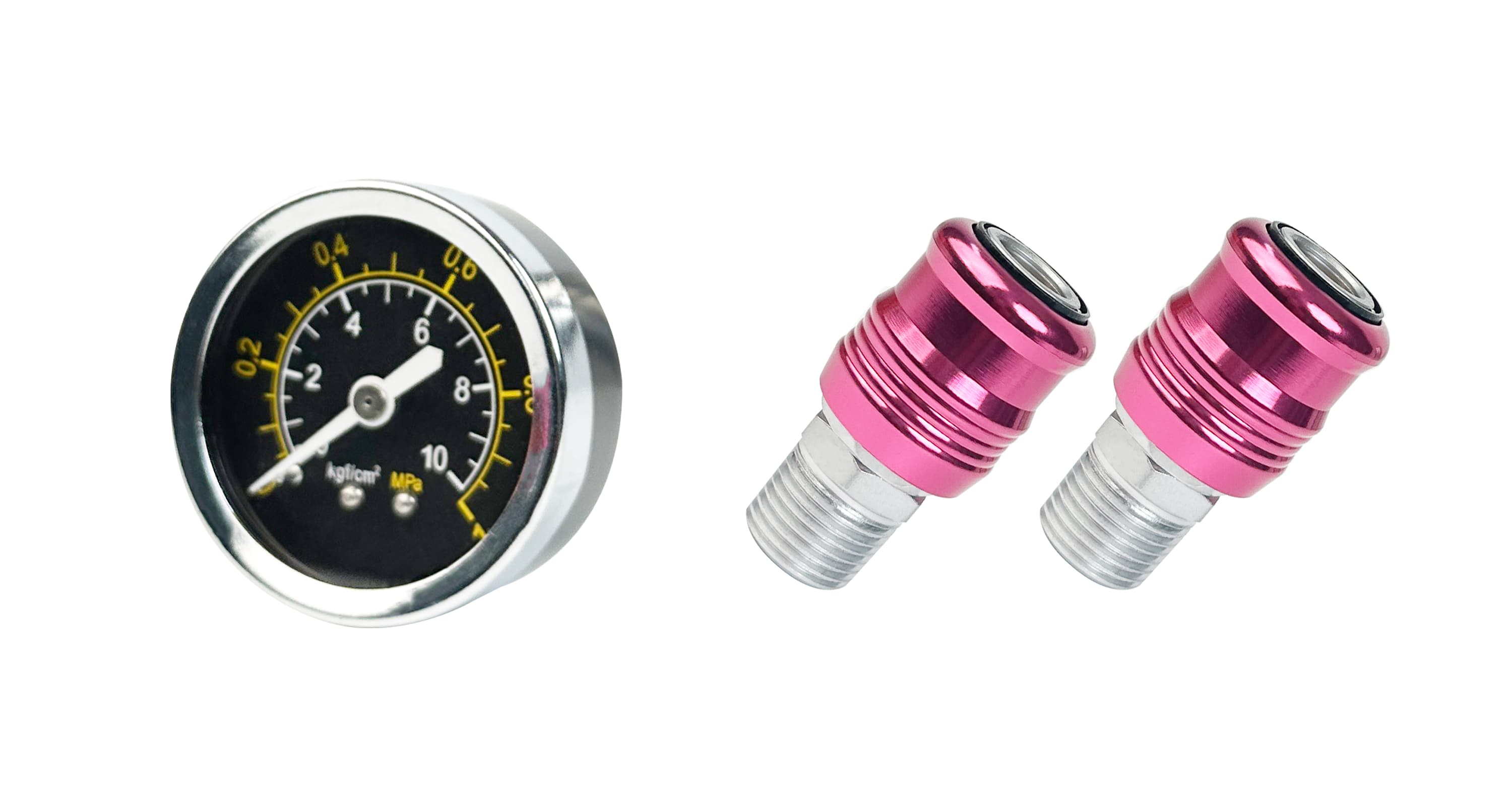

NPT thread connector, pressure gauge, bring more convenience to your installation.

2-Stage Air Filters-Air Drying System

Effective filtration of impurities, dust, liquid and particles in the air.

Observe the water level in time. When the water level exceeds the upper limit (80%), drain the water in time to avoid poor dehumidification.

Usage Guide

  1. Clean ports and accessories before installation to ensure that no impurities enter the air system.
  2. Pay attention to the direction of the air flow on the product body and follow the arrow pointing on the product body.
  3. Before installing the pipe fitting, wrap PTFE tape around the pipe fitting and tighten the fitting using a wrench to avoid air leakage.
  4. The first installation may have an exhaust reaction.
    (No leakage, the first internal pressure is different from the outside, the excess air needs to be discharged first, please wait patiently, it will work normally)
